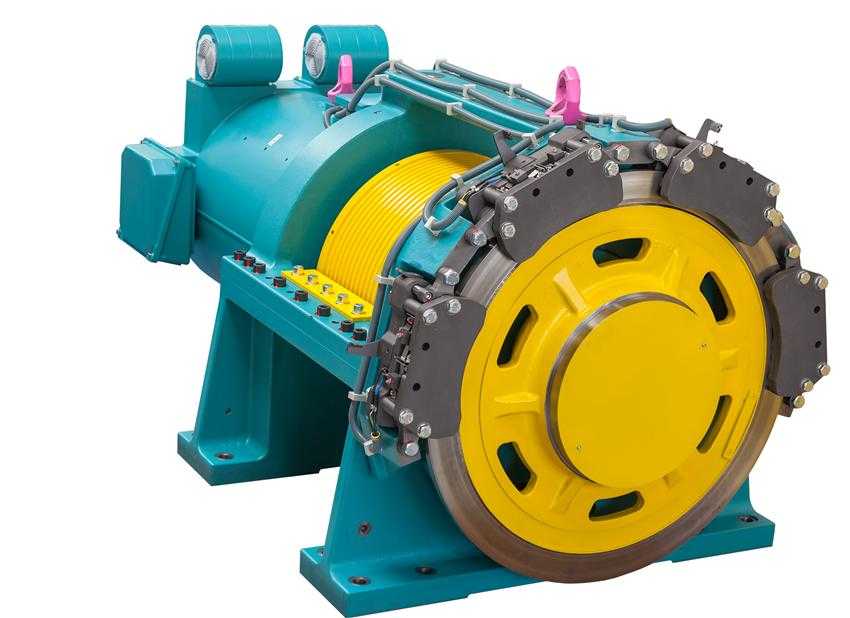

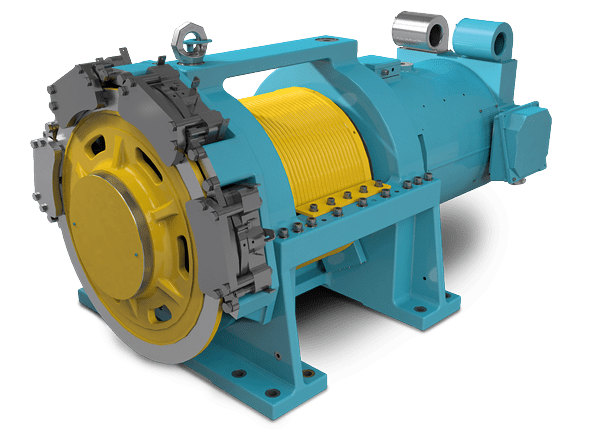

WSG-52

14.000,00$ (USD)

Brand	Wittur

Category: Lift Machines

For fast elevators with an excellent ride comfort (suspension 1:1 up to 12 m/s)
High performance up to 9,800 kg rated load (2:1)
Solid construction for permissible shaft loads at the traction sheave up to 520 kN
High efficiency, reduced power consumption, extremly low-noise level, excellent ride comfort
Safety brake system with electro-magnetical release, manual release as an option, contacts for brake control
EC type-examination certificate according to EN 81-20/50, can be used for UCM solution
Synchronous motor, 20-pole, with high efficiency permanent magnets, insulation class 155 (F), low noise ventilation
Variable options regarding voltage, speed, torque, measuring system and traction sheave paramenters
Rope tension in all directions
